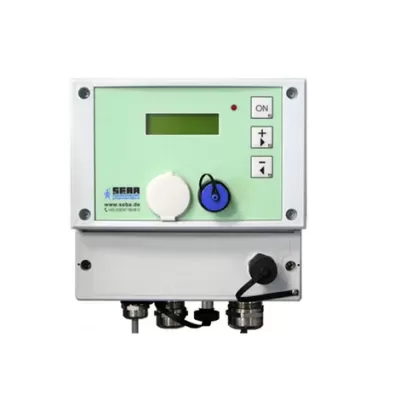

Data Logger Unilog Category: Surface water , Water Quality , Meteorology , Waste Water - Data Logger

0 Customer Review

Product Code: Unilog
Availability: Call for Price

Description

1. Wide-ranging applications, high capacity data collector with a total of 32 logical channels
2. 16 MB ring memory for 1,120,000 measurements
3. Compact plastic housing for wall mounting
4. Backlit LCD with three multi-function buttons to display current measured values and system states
5. Configurable analog and digital input channels to connect up to 32 sensors
6. Mini USB for data transfer (optional)
7. Connectivity for external GSM/GPRS modem type ModCom, Iridium satellite modem type etc.

Call for Price

remove add

Specification
Description
Reviews

Description

Efficient:
The Unilog is especially characterised by its low energy consumption as well as by its intelligent power management. The power can be supplied (depending on the infrastructure) with a 12 V battery, solar panel or an external 230 V/ 12 V DC power supply unit.

Sensors: DS(T)22

SEBAPuls

LevelSense

Surfloat Sensor 4

PS-Light-2 Sensor

MPS-PTEC

MPS-D3

MPD-D8

MPS-K16

RG50/RG100/TRW

Meteorological sensors

Logger Controller:

32Bit Flash controller with integrated WatchDog

RTC-IC Real Time Clock

Memory capacity:

Internal: 16 MB (= 1,120,000 measurement readings)

external: 16GB USB Flash Drive (= 10 million readings)

Save interval:

2min - 99 hours

Channels: max. 32

Measurement routines:

Single value, average value, event clock, Delta mode

Communications
Interface: RS232 (standard), USB, Ethernet interface (option)

Operation:

Interface cable (USB/USB-Mini-RS232)

BlueCon 2 (Bluetooth)

Inputs:

Digital: 1 x RS485 (SHWP) for digital SEBA sensors, 1 x pulse, 2 x Contact, 2x RS232/RS485 (Optional)

Analog: 8 x 0-1 V, 0/4-20 mA expandable to 32 analog signals with external A/D converter

Outputs (Option):

Digital: SDI-12 or MODBUS

Analog: 0...1/5 V or 0/4...20 mA

Power supply: 12 V DC

Housing Material: polycarbonate

Dimensions:

166x185x105 mm (lxwxh)

Display: 3-line LCD display

Keyboard: 3 multifunction buttons

Protection class:

IP65

Fastening:

Wall mounting, top-hat rail

Operating temperature:

-40 °C - +70 °C
