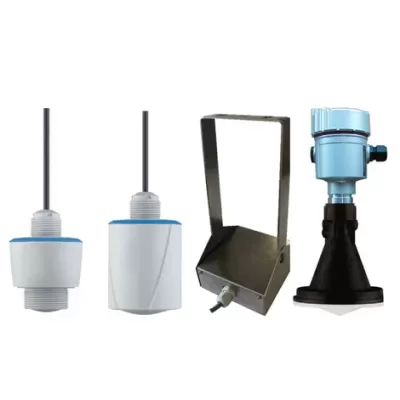

Non-contact radar level measurement type SEBAPuls 8/15/30/35/120

0 Customer Review

Product Code: SEBAPuls 8/15/30/35/120
Availability: Call for Price

Description

1. Radar sensors for non-contact level measurement in flowing waters, lakes, reservoirs and retention basins
2. Measurement ranges and accuracy: 0-8 m (± 5 mm), 0-15 m (± 2 mm), 0-30 m (± 2 mm), 0-35 m (± 2 mm), 0-120 m (± 1 mm)
3. Protection class IP 66 / IP 68
4. With adjustable mounting bracket (100 mm, 300 mm or customized) for mounting on bridges, outriggers, piers and walkways
5. Optionally with RS 485 (SDI-12, Modbus) or 4-20 mA output

Call for Price

remove add

Specification
Description
Reviews

Description

Contactless:
The SEBAPuls does not come into direct contact with the measured medium. Therefore, the measuring cell is not affected by a gauging sectional narrowing, even by undesirable deposits (e.g. lime, mud, sand, etc.).

Low-wear:
The radar sensor operates without any wear at all: even routine maintenance works are usually not required.

Easy Installation:
With the help of mounting clamps and brackets, SEBAPuls can be easily fixed onto bridges or piers.

Robust, precise:
Whether it rains or snows, the pulse method measures the water level reliably and with high measurement accuracy, even with large temperature fluctuations.

Self-sufficient:
Owing to the low power consumption, SEBAPuls can also be operated autonomously with a solar panel or a 12 V replaceable battery.
