Ordinary Rain Gauge

Description

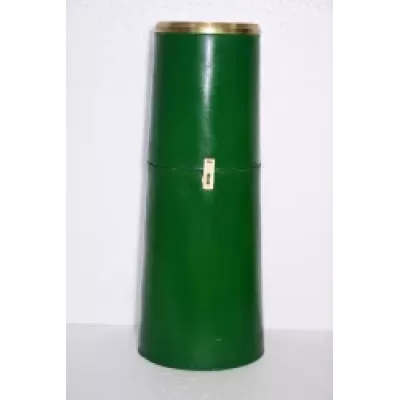

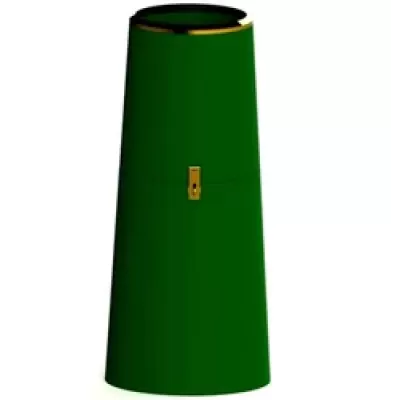

The ‘Virtual’ make Non recoding Rain Gauges are manufactured as per
IS:5225:1969. Rain Gauge is manufactured from non corrosive fiber glass
reinforced plastic container. It consists of collector assembled with brass
Ring. Funnel, Locking Rings and Base. The Rain Gauge is supplied with 4
liter bottle and a Plastic measuring cylinder. Rain Gauges are available
in 200cm² collection area. The essential parts of an ordinary rain gauge
are a funnel through which the rain water is collected in a receiver and a
measuring cylinder (rain measure) with which the rain water collected is
measured. The correct type of rain measure suitable to the type of rain
gauge in use has to be used for the measurement of rainfall.  The rain
measure is graduated for every 0.2 mm of rainfall. This instrument is also
available with IMD Pune, certification (at extra cost).
